Isuzu Trooper

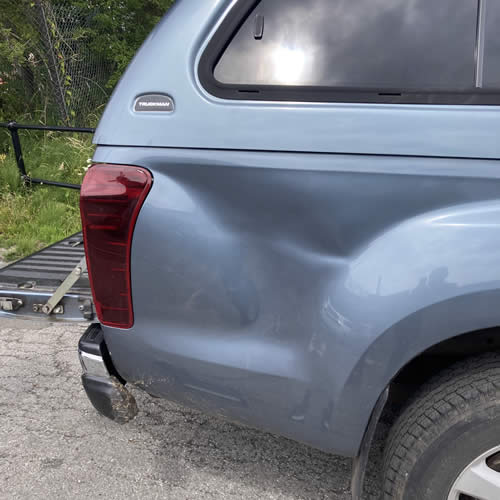

A large impact dent on the quarter panel, likely caused by a side impact from a large object. The PDR technique carefully smoothed out the entire deep dent.
Area: Washington
Assessment of work
Having carefully evaluated the images provided, my assessment as a Paintless Dent Removal (PDR) technician is that this light blue Isuzu D-Max has sustained significant damage to its rear quarter panel (or bedside). The impact is large and complex, with multiple pressure points and a defined crease near the tail light. This is a common area for damage on commercial vehicles. A PDR repair is the superior option here, as it avoids the need for fillers and paint. This is crucial for a working vehicle, as it preserves the incredibly durable factory **e-coating**, an electro-deposited primer that provides fundamental corrosion resistance that can never be replicated by a bodyshop.
Here is my proposed work schedule and detailed assessment for this pickup truck dent repair:
Vehicle & Dent Assessment
- Vehicle: Isuzu D-Max (RG generation, circa 2020 onwards) with Truckman Canopy
- Panel: Rear Quarter Panel / Bedside
- Dent Characteristics: A large, complex area of damage measuring approximately 8-10 inches across. It features a sharp primary impact point near the wheel arch, a secondary impact closer to the tail light, and a connecting crease between them. The damage has distorted a large, relatively flat section of the panel.
- Paint Condition: The paint appears to be in good condition with no visible fractures, although some minor surface scuffs are present. A close-up inspection is needed, but it looks like an excellent candidate for paintless repair.
Overall Strategy: The key to this repair is gaining unobstructed access and methodically working the large, tension-filled area. Access will be achieved primarily by removing the rear tail light assembly. The repair will involve using a combination of large-tipped tools for initial pressure release ("moving the metal") and sharper tools for the crease work. Heat will be used to keep the paint pliable. Given the large, flat nature of the panel, meticulous blending will be essential for a flawless finish. This is a classic PDR job for a skilled technician.
Phase 1: Preparation & Access for Bedside PDR
Vehicle Protection & Decontamination:
Action: The vehicle appears to have been in a working environment, so a thorough wash and decontamination of the entire panel is the first step. Protect the rear bumper, tail gate edge, and Truckman canopy edge with tape and covers.
Tool: Pressure washer, degreaser, clay bar, microfibre cloths, protective coverings.
Reasoning: A perfectly clean surface is essential for accurate PDR light readings and to prevent dirt from scratching the panel during the repair.
Detailed On-Site Inspection:
Action: With the panel clean, perform a meticulous inspection of the paint within the entire damaged area using a strong light source. Check for any deep scratches or fractures hidden by dirt.
Tool: PDR inspection lamp, magnifying lens.
Reasoning: Confirms the viability of a 100% paint-free repair before work commences.
PDR Lighting Setup:
Action: Set up a large PDR fog or fade board. For a large dent on a flat panel like this, a fog board is excellent for showing the overall flow of the panel and managing the large waves of metal as they are pushed out.
Tool: Large PDR LED fog board with an adjustable stand.
Reasoning: The right lighting is critical for visualising the full extent of the damage and guiding the tools to achieve a perfectly flat, level finish.
Gaining Access Behind the Panel:
Action: Carefully unbolt and remove the entire rear tail light assembly. This involves undoing fasteners accessible from the side of the open tailgate and disconnecting the electrical plug.
Tool: Socket set, plastic trim tools for prising, pick tool for electrical connector.
Reasoning: On a pickup truck, the tail light cavity is the primary and often only access point for this area of the bedside. Its removal provides a large opening, perfect for a wide range of PDR tools.
Phase 2: Large Area Dent Removal & Finishing
Strategic Heat Application:
Action: Gently warm the entire surface of the dented area with a professional heat gun. The heat will be reapplied periodically throughout the repair.
Tool: Heat gun.
Reasoning: Heat increases paint flexibility, reduces the risk of cracking, and helps the metal itself to relax and be reshaped more easily.
Initial Bulk Push ("Moving the Metal"):
Action: Using long PDR rods with large, soft rubber or plastic tips, start pushing from the outside edges of the dent inwards. The goal is to gently lift the majority of the damage and release the tension across the panel.
p>Tool: Long-reach PDR rods, whale tails, large interchangeable tips.
Reasoning: Addressing the bulk of the damage first makes the final, detailed work much easier. It's inefficient and risky to start on the sharpest parts of a large dent.
Refining the Damage & Crease Work:
Action: Once the panel is roughly back in shape, switch to sharper, more precise tools. Meticulously work on the remaining smaller lows and the primary crease near the top of the dent, using the PDR light reflection as a guide.
Tool: PDR rods with smaller, sharper tips.
Reasoning: This is the detail work that separates a good repair from a great one. This stage restores the panel's final contour.
Knockdown & Blending:
Action: Throughout the pushing process, use a knockdown tool and PDR hammer to tap down any high spots that are created. Once the panel is level, perform extensive blending across the entire repaired area to remove any lingering texture or "orange peel" effect from the repair.
Tool: Knockdown tool, PDR hammer, blending hammer.
Reasoning: PDR blending is essential on large, flat panels to ensure the light reflects perfectly and uniformly, making the repair completely invisible.
Phase 3: Final Checks & Reassembly
Final Quality Inspection:
Action: View the panel from multiple angles and distances, in both PDR light and natural light, to confirm a perfect finish.
Tool: PDR light, natural daylight.
Reasoning: A final, comprehensive check to ensure the repair meets exacting standards before reassembly.
Reassembly:
Action: Reconnect the electrical plug for the tail light and test all functions (brake, indicator, reverse). Carefully reinstall the light assembly, ensuring a snug fit and proper alignment. Wipe down the panel.
Tool: Socket set, clean microfibre cloth, quick detailer.
Reasoning: Completes the auto body PDR service by returning the vehicle to its original, fully functional state.
Dentmaster Report
Vehicle Details
- Make & Model: Isuzu D-Max
- Panel Repaired: Rear Quarter Panel / Bedside
- Date of Repair: (To be filled, e.g., 9th June 2025)
- Technician: Mark Rennie
Initial Assessment (Pre-Repair)
The Isuzu D-Max pickup arrived with a large and complex dent on the rear bedside, featuring multiple impact points and a crease. An on-site inspection after a thorough clean confirmed the paintwork was intact, making this an ideal job for Paintless Dent Removal (PDR). The primary objective was to restore the large panel while preserving the vital factory paint and anti-corrosion layers.
Work Carried Out & Observations
The repair was executed using a systematic PDR approach suitable for a large commercial vehicle panel:
Preparation & Access:
The primary and sole access point was created by the removal of the rear tail light assembly, which provided excellent reach for all required tooling.
- Observation 1: Thicker Gauge Steel
As expected for a commercial pickup, the steel of the bedside was noticeably thicker and more rigid than that of a standard passenger car. This required the use of tools offering greater leverage and more physical effort to manipulate the metal effectively. - Unforeseen Issue 2: Internal Reinforcing Brace
An unexpected vertical reinforcing brace was located inside the bedside, partially obstructing access to the forward-most part of the dent. This necessitated the use of specially angled PDR tools to work around the brace to complete the repair in that section. - Unforeseen Issue 3: Tight Tail Light Harness Clip
The main wiring harness connector for the tail light was secured with a very tight factory clip deep within the panel. This required a long-reach clip tool and careful manipulation to release without placing any stress on the wiring loom.
- Observation 1: Thicker Gauge Steel
Dent Removal & Finishing:

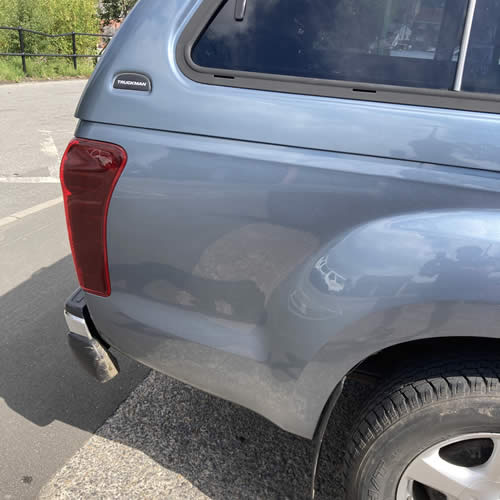

Under constant heat, the large dent was carefully lifted, starting with the bulk of the damage and finishing with the finer crease work. Extensive blending was carried out to ensure the large, flat area had a uniform and flawless finish. The panel was then polished to restore full gloss.
Outcome & Conclusion
The extensive damage to the Isuzu D-Max's bedside has been comprehensively repaired. The panel now exhibits its original contour, free from the large dent and associated creases. The successful use of PDR means the vehicle retains its original factory paint, and perhaps more importantly for a working vehicle, its original, unbroken cathodic **e-coating**. This ensures the panel maintains its maximum corrosion resistance, an advantage that would have been lost with a traditional bodyshop repair involving sanding, filling, and repainting. The vehicle is restored both aesthetically and structurally to its pre-accident condition.
