BMW 5 Series

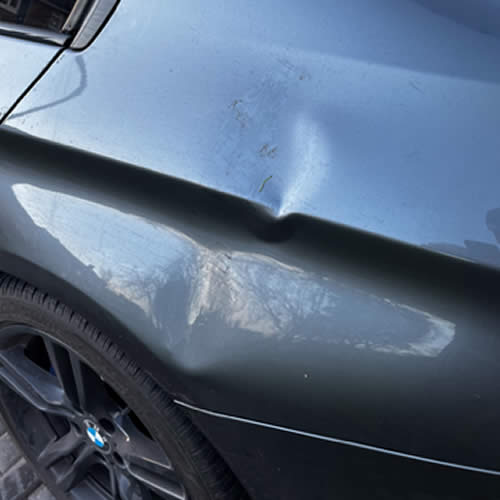

A double impact dent on the quarter panel, likely caused by a side impact from a sharp edge. The PDR technique carefully smoothed out the entire deep dent.
Area: Sunderland
Assessment of work
As a specialist in Paintless Dent Removal (PDR), my examination of this dark grey BMW reveals a significant and challenging dent on the rear quarter panel. The impact has severely compromised the main upper body line (swage line), creating a very sharp, pinched crease. This type of damage on a premium vehicle like a BMW requires the utmost precision. The primary goal is a flawless repair using PDR techniques, which not only restores the visual appearance but, crucially, preserves the original factory paint system. This includes the vital underlying cathodic **e-coating**, an anti-corrosion layer that, once broken by traditional sanding and filling, can never be truly replicated.
My detailed plan for this BMW dent repair is outlined below:
Vehicle & Dent Assessment
- Vehicle: BMW Saloon/Estate (likely F-generation 3 or 5 Series) in Metallic Grey
- Panel: Rear Quarter Panel / C-Pillar area
- Dent Characteristics: A complex dent consisting of a very sharp, deep crease pushed into the main body line, with softer, collateral damage above and below it. The impact point is well-defined and has stretched the metal significantly. There are minor surface scuffs above the crease.
- Paint Condition: BMW paint is notoriously hard and durable, but the sharpness of this crease warrants a very close inspection for fractures. The scuffs appear to be superficial paint transfer. Assuming no breaks, this is an excellent candidate for PDR.
Overall Strategy: The repair will be methodical and patient. Access is key and will be gained by removing interior boot trim and the rear light cluster. Heat will be used extensively to keep the hard paint flexible. The repair will focus on first releasing pressure from the surrounding areas, then meticulously rebuilding the sharp body line from its deepest point outwards. Extensive blending will be required to achieve a perfect, factory-standard finish. This is a high-level PDR body line repair.
Phase 1: Preparation & Access for Quarter Panel Repair
Vehicle Protection & Initial Clean:
Action: Protect the boot lid edge, rear door, and alloy wheel. Thoroughly clean the entire panel with a degreaser to remove all surface contaminants.
Tool: Protective blankets, low-tack tape, isopropyl alcohol (IPA), microfibre cloths.
Reasoning: A clean, protected work area is the foundation of any professional repair, preventing ancillary damage.
Detailed Paint Analysis:
Action: Gently polish the scuff marks to confirm they are superficial. Use a powerful PDR lamp and magnifier to inspect the entire length of the crease for any signs of stress fractures in the paintwork.
Tool: Light polishing compound, PDR inspection lamp, magnifying lens.
Reasoning: This step is non-negotiable. It confirms the viability of a truly paint-free dent repair before committing to the main work.
Advanced Lighting Configuration:
Action: Position a PDR line board and a fog/fade board to provide a comprehensive map of the damage. The line board will highlight the sharp crease, while the fog board reveals the softer surrounding damage.
Tool: PDR LED line board, PDR LED fog board, adjustable stands.
Reasoning: Different lights reveal different aspects of the dent. Using both is essential for a complete understanding and a flawless metal PDR repair.
Gaining Full Access:
Action: Open the boot and carefully remove the interior carpeted side trim liner. The rear tail light assembly will also be unbolted and removed.
Tool: Trim removal toolset, clip pliers, socket set.
Reasoning: On a BMW quarter panel, removing both the trim and the light provides the best possible access points for a variety of PDR tools, allowing for optimal leverage and control needed to repair the damage effectively.
Phase 2: Precision Metal Reshaping & Body Line Reconstruction
Systematic Heat Application:
Action: Apply controlled heat across the entire damaged area. The panel must be kept consistently warm to increase the elasticity of the notoriously hard BMW paint and aid the metal reshaping process.
Tool: Professional heat gun.
Reasoning: Prevents paint cracking and helps to relieve stress in the stretched metal, a critical step for successful crease removal on premium German vehicles.
Working the Surrounding Damage:
Action: Using PDR rods with softer tips, first push out the larger, softer areas of the dent above and below the main body line. This is often referred to as "releasing the pressure".
Tool: PDR rods with soft interchangeable tips, whale tails.
Reasoning: This stabilises the panel and makes the more complex task of repairing the sharp crease more manageable and controlled.
Rebuilding the Body Line:
Action: Switch to specialised, sharp-tipped PDR tools and body line tools. Meticulously work from behind the panel to push up the sharp crease, starting from the ends and working towards the deepest point. This requires immense precision and a light touch.
Tool: PDR rods with sharp/blade tips, dedicated body line tools.
Reasoning: This is the most skilled phase of the repair. Perfectly recreating a factory body line is the hallmark of a true PDR specialist.
Crown Control & Blending:
Action: As the crease is lifted, the displaced metal forms high spots (crowns) which must be continually tapped down. Once the line is restored, the entire area is blended with a blending hammer to remove any final texture and ensure a perfectly smooth surface.
Tool: PDR hammer, knockdown tools with highly polished tips, blending hammer.
Reasoning: The final finish is a delicate balance of pushing and tapping. Blending is what makes the repair totally disappear, restoring the panel to its pre-accident condition.
Phase 3: Final Polishing & Reassembly
Quality Control Inspection:
Action: Conduct a final, meticulous inspection of the repaired panel from all angles and under different lighting conditions to ensure a flawless result.
Tool: PDR lights, natural daylight.
Reasoning: The final check to guarantee the repair is 100% complete and meets the highest standards expected for a premium vehicle.
Final Panel Polish:
Action: Perform a light machine polish over the repaired area. This will remove the initial superficial scuffs and any micro-marring from the PDR process, enhancing the final gloss.
Tool: Dual-action polisher, fine finishing polish, clean microfibre cloth.
Reasoning: Restores the ultimate clarity and shine to the factory paintwork.
Vehicle Reassembly:
Action: Carefully reinstall the rear tail light, ensuring the factory seal is correctly positioned. Re-fit the interior boot trim, making sure all clips are securely engaged.
Tool: Socket set, trim tools.
Reasoning: Completes the auto body PDR service by returning the vehicle to its original, assembled condition, ready for the customer.
Dentmaster Report
Vehicle Details
- Make & Model: BMW 3/5 Series
- Panel Repaired: Rear Quarter Panel
- Date of Repair: (To be filled, e.g., 8th June 2025)
- Technician: Mark Rennie
Initial Assessment (Pre-Repair)
The BMW presented with a sharp and deep crease located directly on the upper rear quarter panel body line. Initial inspection confirmed the paint was not broken, despite the severity of the impact, making it a perfect candidate for repair via Paintless Dent Removal (PDR). The primary objective was to restore the complex body line while keeping the factory paint and its crucial underlying anti-corrosion layers intact.
Work Carried Out & Observations
The repair was performed using advanced PDR methods suited to the vehicle's construction and the nature of the damage:
Preparation & Access:
Access was successfully gained by removing the interior boot lining and the rear light cluster. This provided the dual-entry points needed for complete tool coverage.
- Observation: Thick Factory Sound Deadening
A very thick, rigid sound deadening pad was bonded to the inner skin directly behind the damaged area. This required the use of longer, sharper tools to penetrate the pad cleanly and make direct contact with the steel panel, a common feature on premium German cars.
- Observation: Thick Factory Sound Deadening
Dent Removal & Finishing:
The repair was carried out under constant, controlled heat. The sharp body line was meticulously rebuilt using a combination of specialised PDR rods and extensive blending techniques. The initial surface scuffs were successfully machine polished away after the metalwork was completed.

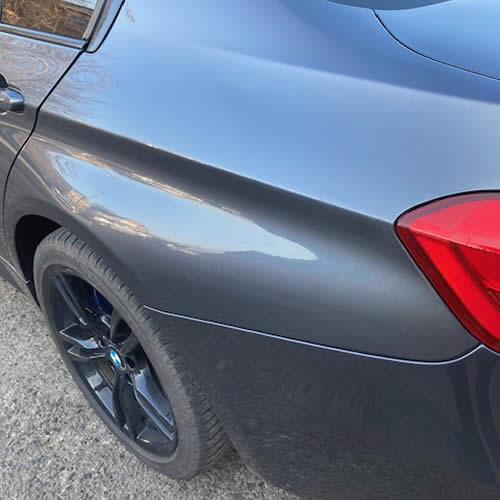

Outcome & Conclusion
The repair of the BMW's quarter panel was an unqualified success. The sharp, unsightly crease has been completely eliminated, and the vehicle's prominent body line is restored to its crisp, factory specification. Critically, this was achieved without compromising the original paintwork. This means the invaluable, factory-applied cathodic **e-coating** remains undisturbed beneath the paint, guaranteeing the original level of corrosion resistance. This successful body line dent repair not only restores the car's aesthetic but also preserves its long-term integrity, a key benefit of choosing expert PDR over traditional bodyshop methods.
