Ford Focus Mk2 Door Dent
This common door ding was located on the rear quarter panel. Using specialized PDR tools, we meticulously massaged the metal back to its original shape without affecting the factory paint.
Service: Car Door Dent Repair
Area: Sunderland
Assessment of work

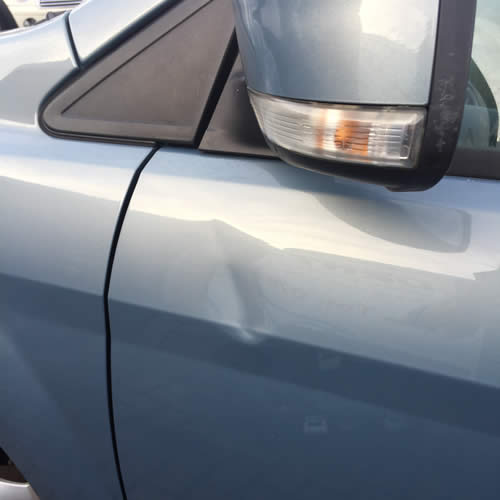

As a dedicated Paintless Dent Removal (PDR) technician, I've assessed the damage to this light blue Ford Focus Mk2's front door. The dent is located high on the panel, adjacent to the wing mirror and A-pillar. It presents as a sharp, creased impact, which requires careful and precise PDR techniques to restore the panel without compromising the paint. Assuming the paint is intact, which it appears to be from this image, this is a good candidate for paint-free dent repair.
Here's my detailed assessment for this car door dent repair project:
Vehicle & Dent Assessment
- Vehicle: Ford Focus Mk2 (Light Blue Metallic)
- Panel: Front Door (likely driver's side given proximity to A-pillar and mirror in typical photo angles)
- Dent Characteristics: A sharp, creased dent, approximately 3-4 inches in length, with a distinct impact point. It's located in the upper section of the door, near the mirror mounting point and potentially affecting a subtle contour or body line in that area.
- Paint Condition: Appears intact from the image. A close-up, on-site inspection is necessary to confirm no micro-fractures in the paint, especially within the sharpest part of the crease. This is crucial for successful PDR.
Overall Strategy: Access will primarily be gained by lowering the window and working tools down between the glass and the outer door skin, using a window guard. If optimal leverage or tool angle is restricted, removal of the interior door panel will be considered. The repair will focus on carefully lifting the crease from its deepest point outwards, meticulously managing high spots, and blending the repair seamlessly. Heat may be applied to aid paint flexibility. This is a typical job for a skilled dent specialist.
Phase 1: Preparation & Access for Door PDR
Vehicle Protection:
Action: Protect the window glass, window seals, wing mirror, A-pillar trim, and interior door panel (if not initially removed) with appropriate protective materials.
Tool: Window guard, soft cloths, low-tack painter's tape.
Reasoning: Essential for preventing any accidental scratches or scuffs during the PDR repair process.
Panel Cleaning & Detailed Paint Inspection:
Action: Thoroughly clean the affected area of the door. Perform a meticulous inspection of the paint within the crease and around the impact point for any signs of cracking or severe stress.
Tool: Isopropyl alcohol (IPA), clean microfibre cloths, strong inspection lamp, possibly a magnifying glass.
Reasoning: A clean surface is paramount. Confirming paint integrity is vital before committing to paintless repair, especially with sharp creases.
Advanced Lighting Setup:
Action: Position PDR LED reflection lights (line and fog boards) to clearly illuminate the dent's topography, showing the depth of the crease, its length, and any associated high or low spots. Accurate lighting is key for dent mapping.
Tool: PDR LED reflection boards, adjustable stands.
Reasoning: Essential for visualizing the true nature of the damage and guiding the precise tool movements required for crease removal.
Gaining Access Inside the Door:
Action (Primary Method): Lower the window fully. Insert a window guard to protect the glass and a plastic wedge at the top of the door (between the door frame and glass) to create an access channel for PDR tools.
Tool: Window guard, door wedge, specialized door PDR tools (e.g., flat bars, hook tools, whale tails).
Reasoning: This is the standard and often quickest method for accessing dents in the upper portion of doors. Many PDR tool sets are designed for this approach.
Action (Secondary Method - If Needed): If access via the window opening proves restrictive due to internal bracing, window regulator components, or if superior leverage is required for the sharp crease, the interior door panel (door card) will be carefully removed. This involves disconnecting switches and unfastening clips/screws.
Tool: Trim removal toolset, clip pliers, screwdrivers (Phillips/Torx), pick tools for electrical connectors.
Reasoning: Removing the door card provides unobstructed access to the inner door skin but adds time to the repair. The decision is based on achieving the highest quality dent removal outcome.
Phase 2: Precision Crease Removal & Metal Reshaping
Strategic Heat Application (If Necessary):
Action: Gently apply controlled heat to the paint over the creased area. The panel should be warmed, not made hot to the touch.
Tool: Professional heat gun with variable temperature control.
Reasoning: Heat increases the flexibility of the paint and metal, reducing the risk of paint cracking during the manipulation of a sharp crease. This is a common practice in advanced PDR.
Working the Crease:
Action: Using specialized PDR tools (e.g., blade tips, sharp-tipped rods), meticulously work from behind to lift the crease. Start from the ends of the crease and work towards the center, or vice-versa, depending on how the metal responds. Focus on lifting the deepest part of the crease gradually in small increments.
Tool: PDR rods with sharp/blade tips, whale tails if access is tight or requires flat pressure.
Reasoning: Creases require precise, concentrated pressure. Lifting too much too quickly can create unwanted highs or distort the metal. This is where PDR skill is paramount.
Managing High Spots (Crowns):
Action: As the crease is lifted, high spots or "crowns" will inevitably form around it. These must be carefully tapped down from the painted surface using a knockdown tool and PDR hammer. This is an iterative process: push, tap down, assess.
Tool: Knockdown tool with various interchangeable tips (nylon, Delrin, polished metal for fine work), lightweight PDR hammer.
Reasoning: Essential for leveling the panel. Paintless dent repair is as much about tapping down highs as it is about pushing up lows.
Blending and Refining:
Action: Once the main crease is removed, use blending techniques and finer PDR tools to smooth out any remaining texture, subtle imperfections, or slight waviness in the repaired area. The goal is a seamless transition with the surrounding original panel.
Tool: Blending hammer, highly polished PDR blending tips, fine knockdown tips.
Reasoning: This is the finishing stage that restores the panel to its pre-dent, factory-smooth condition. PDR blending ensures an invisible repair.
Phase 3: Finishing Touches & Reassembly
Comprehensive Final Inspection:
Action: Conduct a thorough visual inspection of the repaired area from multiple angles and distances, using PDR lighting and natural daylight where possible.
Tool: PDR reflection lights, natural light.
Reasoning: Ensures complete removal of the crease and a flawless finish. This is the final quality check for any mobile dent removal or workshop PDR.
Panel Cleaning:
Action: A final clean of the repaired door section to remove any fingerprints or residues from the repair process.
Tool: IPA or quick detailer spray, clean microfibre cloth.
Reasoning: Presents the finished work in the best possible condition.
Reassembly (If Interior Panel Was Removed):
Action: If the interior door panel was removed, carefully reinstall it. Ensure all clips are properly engaged, screws are tightened, and any electrical connectors are reconnected and tested (e.g., window switch, mirror controls).
Tool: Trim removal tools, screwdrivers, clip pliers.
Reasoning: Returns the vehicle to its original, fully assembled and functional state after the auto body PDR.
Dentmaster Report
Vehicle Details
- Make & Model: Ford Focus Mk2
- Panel Repaired: Front Door
- Date of Repair: (To be filled, e.g., 5th June 2025)
- Technician: Mark Rennie
Initial Assessment (Pre-Repair)
The Ford Focus Mk2 presented with a sharp, creased dent, approximately 3-4 inches in length, located high on the front door, near the wing mirror. The paint appeared intact upon initial visual inspection but required close on-site confirmation due to the sharpness of the crease. The damage was deemed a suitable candidate for Paintless Dent Removal (PDR).
Work Carried Out & Observations
The PDR process was performed with careful attention to the creased nature of the damage:
Preparation & Access:
Standard protective measures were applied. Close paint inspection confirmed no fractures. Access was initially gained via the window opening. However, to achieve optimal tool control and leverage for the sharpest part of the crease, the interior door panel was subsequently removed. This provided excellent, direct access for the necessary PDR tools.
- Unforeseen Issue 1: Window Regulator Guide Rail Proximity
A portion of the window regulator guide rail was situated very close to the inner skin directly behind the lower end of the crease. This required careful selection of thinner, angled PDR tools for that specific section to avoid contact with the regulator mechanism while still applying effective pressure. - Observation: Wiring Loom for Mirror Controls
The wiring loom for the electric mirror controls ran close to the access area at the top of the door. Care was taken to work around this loom to prevent any damage during tool insertion and manipulation. No disconnection was necessary.
- Unforeseen Issue 1: Window Regulator Guide Rail Proximity
Dent Removal & Blending:
Controlled heat was applied to the creased area to enhance paint flexibility. The crease was meticulously lifted using specialized PDR tools, working from the ends inward. High spots were diligently managed with knockdown tools. Extensive blending work was performed to ensure a smooth, even surface and restore the original panel contour. This was a delicate metal PDR operation.
Finishing & Reassembly:
A thorough final inspection confirmed the complete removal of the crease. The panel was cleaned. The interior door panel was reinstalled, with all electrical components reconnected and tested for full functionality.
Outcome & Conclusion

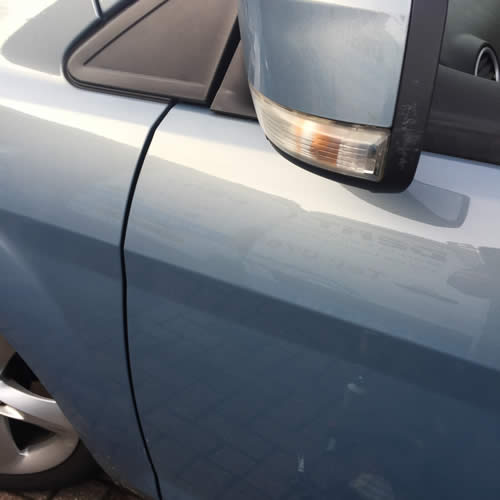

The sharp, creased dent on the Ford Focus Mk2's front door has been successfully and completely repaired using Paintless Dent Removal (PDR) techniques. The panel's original contour has been fully restored, and the factory paint finish remains intact and undamaged. The minor challenge posed by the window regulator guide rail proximity was managed with careful tool selection. This door dent repair highlights PDR's effectiveness in addressing complex crease damage while preserving the original factory finish.
