Renault Scenic
A tailgate dent caused by a parking error. Using specialized PDR tools, we meticulously massaged the metal back to its original shape without affecting the factory paint.
Area: Durham
Service: Boot/Tailgate Dent Repair
Assessment of work
As a master PDR technician, my analysis of this metallic blue Renault Scenic's tailgate reveals an exceptionally severe and complex dent. The impact has created a deep, inverted V-shaped crease, collapsing the panel and severely stretching the metal. This level of damage pushes the boundaries of what is possible with Paintless Dent Removal (PDR) and would be written off for replacement by almost any standard bodyshop. However, for a specialist, this is a challenge to save the original panel. The absolute priority is preserving the factory finish, which in turn protects the vital underlying cathodic **e-coating**. This anti-corrosion layer is fundamental to the vehicle's longevity and, once sanded away, can never be truly replicated.
My detailed plan for this extreme Renault Scenic dent repair is outlined below.
Vehicle & Dent Assessment
- Vehicle: Renault Scenic Mk3 (circa 2009-2016) in Metallic Blue
- Panel: Tailgate / Boot Lid

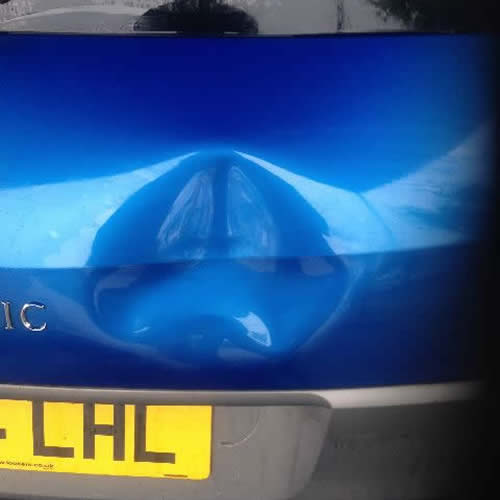

- Dent Characteristics: A large, deep, and collapsed V-shaped crease. The metal is severely stretched and drawn inwards, creating immense tension in the panel. The damage is located centrally, just above the number plate recess.
- Paint Condition: The reflections, though distorted, suggest the paint may be intact. However, the extreme nature of the stretch makes a microscopic, on-site inspection absolutely critical. The success of a paintless repair is entirely contingent on this.
Overall Strategy: This repair is not possible with conventional PDR tools alone. It will require a hybrid approach, starting with Glue Pull Repair (GPR) to safely lift the deepest, most stretched parts of the crease and relieve the immense tension. Pushing from behind first would be too aggressive and would likely crack the paint. Once the bulk of the damage is lifted via GPR, traditional PDR tools will be used from inside to refine the shape. This will be a slow, painstaking process.
Phase 1: Preparation, Access & Tension Release
Protection and Decontamination:
Action: Protect the rear window, tail lights, and bumper. The tailgate will be thoroughly decontaminated and cleaned with IPA to ensure perfect adhesion for glue tabs.
Tool: Protective covers, low-tack tape, IPA, microfibre cloths.
Reasoning: Essential for preventing ancillary damage and absolutely critical for the success of the Glue Pull Repair process.
Exhaustive Paint Integrity Analysis:
Action: Perform the most detailed inspection possible of the paintwork within every part of the crease using high-powered lighting and magnification.
Tool: High-magnification lamp, PDR line board.
Reasoning: This is the most important checkpoint. If fractures are found, the customer must be advised. The extreme stretch makes this a high-risk but potentially high-reward repair.
Gaining Internal Tailgate Access:
Action: Carefully remove the large plastic inner trim panel of the tailgate. This involves removing any screws and then methodically releasing the series of hidden retaining clips.
Tool: Trim removal toolset, screwdriver set.
Reasoning: Removing this panel provides the only means of access for tools, enabling the final stages of the tailgate dent removal.
Initial Lift & Tension Release with GPR:
Action: Select large, strong glue tabs. Apply hot PDR glue, place the tabs in the deepest sections of the crease, and use a slide hammer to perform sharp, controlled pulls. This process will be repeated dozens of times to slowly "shock" the metal upwards and relieve the tension.
Tool: PDR glue gun, high-strength PDR glue, assorted large glue tabs, slide hammer.
Reasoning: GPR is the only safe way to begin repairing a dent this stretched. It pulls the metal without creating the internal pressure that would be caused by pushing with a tool from behind.
Phase 2: Advanced Metal Shaping & Reconstruction
Heat Management & Metal Shrinking:
Action: The panel will be kept very warm with a heat gun throughout the repair. After the initial GPR pulls, focused heat will be applied to the highest ridges, which are then tapped down to help shrink the severely stretched metal.
Tool: Professional heat gun, polished knockdown tool, PDR hammer.
Reasoning: Heat is vital for paint flexibility. The focused heat and tap-down process is an advanced technique to tighten the loose, stretched metal. This is the essence of an advanced PDR repair.
Refining with Traditional PDR Tools:
Action: After the GPR stage has restored the panel's general shape, switch to traditional PDR rods. Working from inside, use these tools to refine the shape, address the smaller lows, and begin to rebuild the panel's natural curvature.
Tool: PDR rods with various tips, whale tails.
Reasoning: This provides the fine control needed to finish the repair, addressing the intricate details that glue pulling alone cannot perfect.
Extensive Blending & Finishing:
Action: This is the most time-consuming stage. It involves continuously tapping down high spots and blending the entire area to remove any remaining texture. The goal is a perfectly smooth surface with no hint of the previous damage.
Tool: PDR blending hammer, multiple knockdown tips.
Reasoning: For a repair this severe, achieving a perfectly flat and smooth surface is a painstaking process of balancing pushes, pulls, and taps to make the repair invisible.
Phase 3: Final Inspection & Reassembly
Final Quality Assurance Inspection:
Action: The panel is scrutinised from every possible angle under multiple light sources to ensure the repair is completely undetectable.
Tool: PDR line board, fog board, natural daylight.
Reasoning: The final sign-off to guarantee a world-class repair that has saved a panel from certain replacement.
Reassembly:
Action: The interior trim panel is carefully reinstalled, ensuring all clips are securely engaged to prevent any rattles.
Tool: Trim tools.
Reasoning: Returns the vehicle to its complete, factory-assembled state, finishing the service.ol>
Dentmaster Report
Vehicle Details
- Make & Model: Renault Scenic Mk3
- Panel Repaired: Tailgate
- Date of Repair: (To be filled, e.g., 19th June 2025)
- Technician: Mark Rennie
Initial Assessment (Pre-Repair)
The Renault Scenic was presented with extreme damage to the tailgate, featuring a deep, collapsed V-shaped crease that had severely stretched the metal. This was classified as a master-level repair. Despite the severity, a detailed inspection confirmed the paint was not fractured, authorising a high-risk, advanced Paintless Dent Removal (PDR) attempt.
Work Carried Out & Observations
A hybrid technology approach was essential to save this panel from the scrapyard:
Access & Initial Repair:
Access was gained by removing the interior tailgate trim. The crucial first stage of the repair was conducted using Glue Pull Repair (GPR) with a slide hammer to safely lift the deepest, most stretched sections of metal and relieve the immense panel tension.
- Primary Challenge: Extreme Metal Stretch
The steel was stretched far beyond its normal elastic limit, resulting in very "loose" or "oily" metal after the initial pulls. This required extensive, patient work with a heat gun and knockdown hammer to shrink and tighten the metal back to a stable form. - Observation: Wiper Motor Obstruction
The rear wiper motor assembly was located directly behind the upper part of the dent. After the GPR stage, this required the use of specially angled PDR tools to work around the housing to complete the final shaping.
- Primary Challenge: Extreme Metal Stretch
Refining & Finishing:
Following the GPR stage, traditional PDR tools were used from inside to meticulously refine the shape. The process involved hours of careful pushing, tapping, and blending to achieve a perfectly level and smooth surface.
Outcome & Conclusion
The result of this extremely complex repair demonstrates the absolute upper limit of what is achievable with modern PDR. A panel that was severely damaged and would have been instantly condemned for replacement has been successfully saved. The deep, collapsed crease is gone, and the tailgate has been returned to its original factory shape. Critically, the original blue paint and its vital, protective **e-coating** are fully preserved. This not only restores the vehicle's appearance but maintains its originality, structural integrity, and long-term value in a way no traditional repair ever could.
