VW Beetle
A dent on the bonnet caused by someone sitting on it! The PDR technique carefully smoothed out the entire length of the crease.
Area: Consett/Stanley
Service: Bonnet Dent Repair
Assessment of work
As a specialist in Paintless Dent Removal (PDR), my assessment of this white VW Beetle bonnet reveals a very large, shallow pressure dent. This type of damage is often caused by leaning or sitting on the panel and creates a significant, flowing distortion rather than a sharp impact. On the highly curved bonnet of a Beetle, this is particularly challenging to repair flawlessly. A bodyshop repair would be hugely excessive, requiring the entire bonnet to be repainted. An expert PDR repair is the only suitable method, as it will perfectly restore the panel's iconic shape while critically preserving the original factory paint and its underlying cathodic **e-coating**, the vehicle's essential defence against corrosion.
My detailed strategy for this VW Beetle bonnet repair is outlined below.
Vehicle & Dent Assessment
- Vehicle: Volkswagen Beetle (A5, circa 2011-2019) in White
- Panel: Bonnet / Hood
- Dent Characteristics: An extremely large, shallow, and soft pressure dent. The damage is a very broad "wave" in the panel, likely over 12 inches across, located in the central area of the bonnet.
- Paint Condition: The paint appears to be in excellent condition with no visible damage, making this a perfect candidate for PDR.
Overall Strategy: The repair will be performed entirely from the underside of the bonnet, which has good access once the insulation pad is removed. The main challenge is the sheer size of the dent and the highly convex curvature of the Beetle's bonnet. The repair will be a patient process of massaging the metal back into shape with large, soft-tipped tools. The final blending stage will be extensive and meticulous to ensure the repair is completely invisible on the unforgiving white paint.
Phase 1: Preparation & Bonnet Access
Vehicle Protection & Surface Cleaning:
Action: Place heavy-duty protective covers on the front wings and windscreen. The entire bonnet surface will be thoroughly cleaned and dried.
Tool: Fender covers, windscreen protector, IPA, microfibre cloths.
Reasoning: Prevents any accidental damage and provides a perfectly clean surface for accurate light readings.
Lighting for Large, Shallow Damage:
Action: A large PDR fog board will be used. This is the best lighting tool for reading a very large, shallow dent, as its gradated reflection will clearly show the subtle distortion across the panel.
Tool: Large PDR LED fog board on a stand.
Reasoning: The success of a large VW Beetle bonnet repair like this is dependent on the technician's ability to see the full extent of the shallow damage.
Gaining Under-Bonnet Access:
Action: Carefully unclip and remove the under-bonnet heat and sound insulation pad to expose the entire underside of the bonnet skin.
Tool: Trim clip removal tool.
Reasoning: This is the standard, essential procedure for gaining the access required for a PDR repair on a bonnet.
Phase 2: Precision Soft Dent Removal
Gentle Heat Application (Precautionary):
Action: The panel will be gently warmed with a heat gun. This is a precautionary measure to ensure maximum paint flexibility as the large area of metal is moved.
Tool: Professional heat gun.
Reasoning: Even for soft dents, it is always good practice in professional PDR to ensure the paint is warm and pliable.
Massaging the Dent from Below:
Action: Using long-reach PDR tools with large, soft, rounded tips, the process begins by gently pushing from the outside edges of the dent inwards. This is a slow, massaging process designed to lift the metal cleanly and evenly across the large area.
Tool: Long PDR rods with large soft interchangeable tips.
Reasoning: A large, shallow dent requires broad, gentle pressure. Sharp pushes would create small high spots or "push marks" that would be very visible on the smooth, curved panel.
Extensive Blending for a Flawless Finish:
Action: This is the most critical stage for this repair. Once the panel is level, a blending hammer is used to meticulously work the entire repaired area. This process removes any minuscule imperfections and ensures the repaired surface flows perfectly with the bonnet's iconic curve.
Tool: PDR blending hammer, highly polished knockdown tips.
Reasoning: Perfect blending is what makes the repair invisible. It's especially crucial on a large, highly curved panel where the eye can easily pick up on any distortion in the reflections.
Phase 3: Final Inspection & Reassembly
Comprehensive Quality Inspection:
Action: The bonnet is inspected from multiple angles and distances, using the PDR light and natural daylight to confirm a flawless finish with no hint of the previous damage.
Tool: PDR light, natural light.
Reasoning: The final sign-off to guarantee a repair that meets the highest professional standards.
Reassembly:
Action: The under-bonnet insulation pad is carefully reinstalled, ensuring all clips are securely fastened.
Tool: Trim clip tools.
Reasoning: Returns the vehicle to its original factory specification, completing the service.
Dentmaster Report
Vehicle Details
- Make & Model: Volkswagen Beetle
- Panel Repaired: Bonnet
- Date of Repair: (To be filled, e.g., 24th June 2025)
- Technician: Mark Rennie
Initial Assessment (Pre-Repair)
The VW Beetle was presented with an extremely large and shallow pressure dent on its highly curved bonnet. While not sharp, the size and location made it a challenging candidate for Paintless Dent Removal (PDR). The paint was confirmed to be intact, authorising a high-skill repair.
Work Carried Out & Observations
The repair was performed entirely from the underside of the bonnet, focusing on the careful reshaping of the large, distorted area:
Access & Preparation:
Full, unobstructed access was gained by removing the under-bonnet insulation pad.
- Primary Challenge: Panel Curvature & Size
The combination of the bonnet's extreme convex curve and the large, shallow nature of the dent was the main challenge. It required constant repositioning of the PDR light and the use of multiple long-reach tools from different angles to ensure the entire area was lifted evenly without creating flat spots. - Observation: Wiper Motor Linkage
The rearmost edge of the dent was very close to the windscreen and the bulky wiper motor linkage underneath. This required the use of specially angled tools to finish the repair in this tight area without making contact with the mechanism.
- Primary Challenge: Panel Curvature & Size
Dent Removal & Finishing:
The large, shallow dent was patiently massaged out from below using soft-tipped tools. The most time-consuming part of the repair was the extensive blending process required to achieve a perfectly smooth and uniform surface on the unforgiving white paint, ensuring the bonnet's iconic curve was perfectly restored.
Outcome & Conclusion

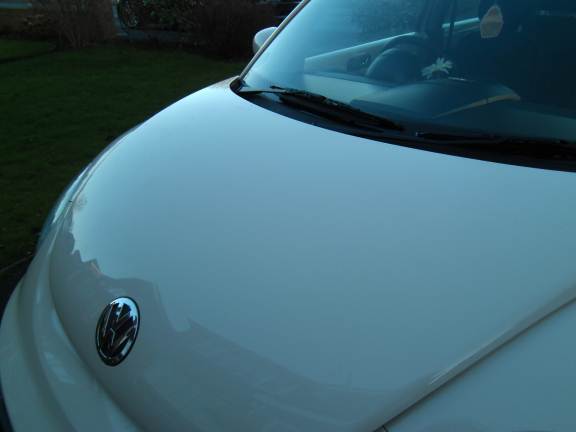

The very large and challenging dent on the VW Beetle's bonnet has been completely and successfully removed through expert PDR techniques. The panel's iconic curved shape has been perfectly restored without the need for any fillers or paint. This meticulous process has not only provided a flawless cosmetic result but has critically preserved the original, durable factory **e-coating**, ensuring the vehicle maintains its intended corrosion resistance and value. The result demonstrates the ability of PDR to tackle large-scale damage on even the most uniquely shaped panels.
