Skoda Fabia

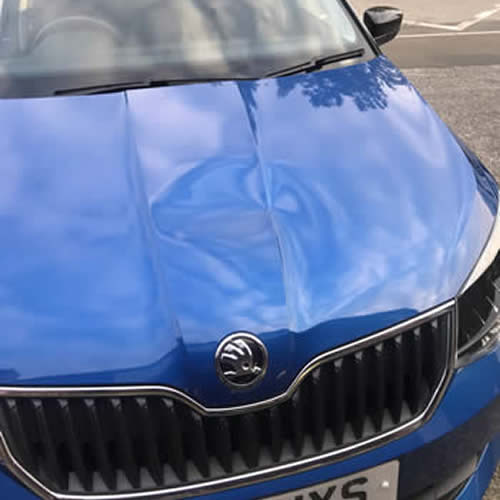

A dent on the bonnet caused by someone leaning on it! The PDR technique carefully smoothed out the entire length of the crease.
Area: Washington
Service: Bonnet Dent Repair
Assessment of work
As a master Paintless Dent Removal (PDR) technician, I have conducted a thorough assessment of the damage to this metallic blue Skoda's bonnet. The vehicle has sustained a very large and complex pressure dent that has completely collapsed the prominent central body line. This is an extremely challenging repair that requires a high level of skill and patience. A conventional bodyshop would immediately condemn the bonnet for replacement and repainting. However, an expert PDR repair offers the only viable path to save the original panel, preserving the factory paint and, most importantly, the foundational cathodic **e-coating**, which is the vehicle's essential defence against long-term corrosion.
My detailed strategy for this complex Skoda bonnet dent repair is outlined below.
Vehicle & Dent Assessment
- Vehicle: Skoda Fabia (Third generation, circa 2015 onwards) in Race Blue Metallic
- Panel: Bonnet / Hood
- Dent Characteristics: A very large, broad pressure dent that has collapsed the central body line (swage line) and created large, soft "wave" dents on either side. The total damaged area spans a significant portion of the bonnet's width.
- Paint Condition: The paint appears to be in excellent condition with no visible fractures, even on the collapsed body line, making this a viable, albeit very difficult, candidate for PDR.
Overall Strategy: The repair will be performed entirely from the underside of the bonnet, which has good access once the insulation pad is removed. The main challenge is the sheer size of the damage and the fact that the central body line must be completely rebuilt. The repair will be a methodical process of first lifting the large, soft lows on either side to relieve tension, then painstakingly reconstructing the central crease. Extensive blending will be required for a flawless finish.
Phase 1: Preparation & Under-Bonnet Access
Vehicle Protection & Cleaning:
Action: Place heavy-duty protective covers on the front wings, grille, and windscreen. The entire bonnet surface will be thoroughly cleaned and dried.
Tool: Fender covers, windscreen protector, IPA, microfibre cloths.
Reasoning: Prevents any accidental damage and provides a perfectly clean surface for accurate PDR light readings.
PDR Lighting for Complex Damage:
Action: A combination of lighting will be used. A PDR line board will be positioned across the bonnet to accurately read the collapsed body line, while a large fog board will be used to see the large, soft surrounding damage.
Tool: PDR LED line board and fog board on adjustable stands.
Reasoning: A complex dent like this requires different types of light to understand and repair every aspect of the damage correctly. This is fundamental to a quality Skoda bonnet dent repair.
Gaining Access:
Action: Carefully unclip and remove the under-bonnet heat and sound insulation pad to expose the underside of the bonnet skin.
Tool: Trim clip removal tool.
Reasoning: This is the standard procedure to gain the unobstructed access required for this PDR repair.
Phase 2: Precision Body Line Reconstruction
Careful Heat Application:
Action: The panel will be kept consistently warm with a heat gun to ensure maximum paint flexibility as the large area of metal is moved and the body line is reformed.
Tool: Professional heat gun.
Reasoning: Heat helps the paint stretch safely, which is critical when performing a difficult repair on a major body line.
Rebuilding the Collapsed Body Line:
Action: This is the core of the repair. Using specialised PDR body line tools, the central crease is painstakingly pushed back up from underneath. This is a slow, methodical process of hundreds of precise pushes to reform the crisp factory line.
Tool: PDR body line tools, sharp-tipped rods.
Reasoning: A collapsed body line must be completely rebuilt, not just pushed out. This requires immense skill and patience. It's the most challenging part of any body line dent removal.
Lifting Surrounding Lows & Blending:
Action: In conjunction with rebuilding the line, the large, soft lows on either side are massaged out. The entire area is then meticulously blended with a blending hammer to remove any tiny imperfections and ensure a perfectly smooth, uniform surface.
Tool: PDR rods with soft tips, blending hammer, polished knockdown tips.
Reasoning: The final finish is achieved by perfecting the entire area. Blending ensures the light reflects perfectly across the panel, making the repair invisible.
Phase 3: Final Inspection & Reassembly
Comprehensive Quality Inspection:
Action: The bonnet is inspected from all angles in different lighting conditions to ensure the repair is completely undetectable.
Tool: PDR lights, natural daylight.
Reasoning: The final sign-off to guarantee a repair that meets the highest professional standards.
Reassembly:
Action: The under-bonnet insulation pad is carefully reinstalled, ensuring all clips are securely fastened.
Tool: Trim clip tools.
Reasoning: Returns the vehicle to its original factory specification.
Dentmaster Report
Vehicle Details
- Make & Model: Skoda Fabia
- Panel Repaired: Bonnet
- Date of Repair: (To be filled, e.g., 26th June 2025)
- Technician: Mark Rennie
Initial Assessment (Pre-Repair)
The Skoda Fabia was presented with a very large and complex pressure dent that had collapsed the main central body line of the bonnet. This was classified as a master-level repair. An inspection confirmed the paint was intact, making it a viable, though extremely challenging, candidate for an advanced Paintless Dent Removal (PDR) repair.
Work Carried Out & Observations
The repair was performed entirely from the underside of the bonnet, focusing on the careful reconstruction of the damaged body line:
Access & Preparation:
Full access was gained by removing the under-bonnet insulation pad.
- Unforeseen Issue 1: Reinforced Box Section
The central body line on this bonnet is heavily reinforced from underneath with a double-skinned "box section" structure. This made direct pushing on the crease impossible. The repair had to be performed by meticulously working the very edges of the line from either side, a far more difficult and time-consuming technique. - Observation 2: High-Tension Steel
The steel of the bonnet was very high-tension, characteristic of modern VAG group vehicles. This required more focused pressure and very precise pushes to reshape the metal smoothly without creating unwanted high spots.
- Unforeseen Issue 1: Reinforced Box Section
Dent Removal & Finishing:
The repair was a painstaking process of rebuilding the central body line from its edges, while simultaneously lifting the large, soft lows on either side. Once level, the entire area was extensively blended to ensure a flawless finish in the metallic blue paint.

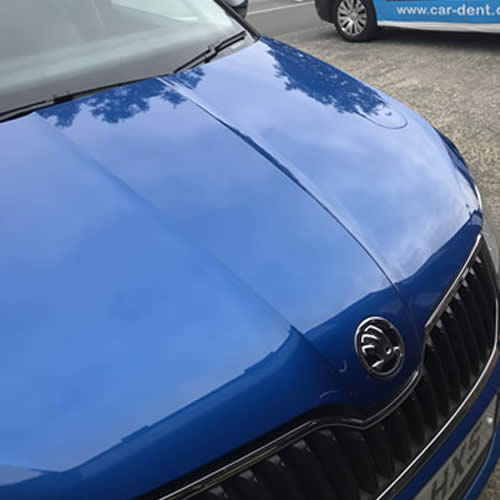

Outcome & Conclusion
The extremely challenging body line dent on the Skoda Fabia's bonnet has been completely removed through expert PDR. A repair that would have required a full bonnet replacement and repaint at a bodyshop was completed while perfectly preserving the vehicle's original factory finish. The integrity of the panel, including the all-important factory **e-coating**, remains 100% intact. This result not only restores the vehicle's appearance perfectly but also maintains its originality and value, demonstrating the clear superiority of advanced PDR for even the most severe damage.
